BK Precision DC Power Supply SOP

Plug the power cord in on the back panel

Ensure that the voltage switch is at the 110V setting

Push the power button on the front panel

The screen will light up, and after initializing, display the maximum voltage and current settings for each channel

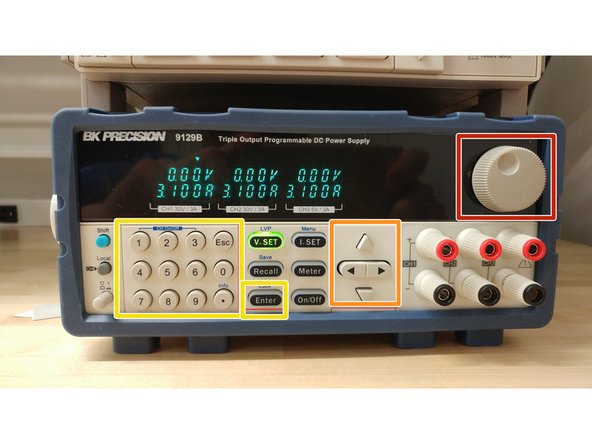

Voltage and Current can be set in several different ways:

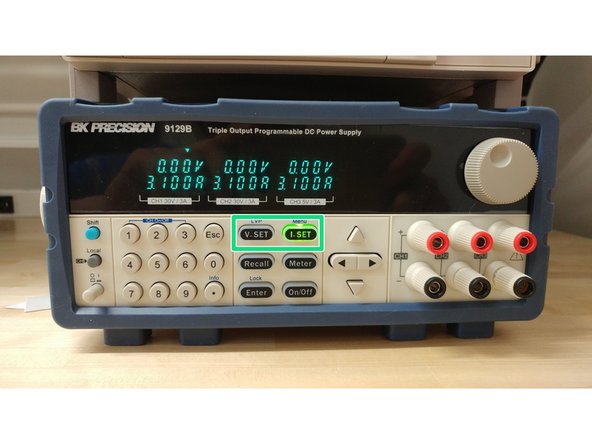

The analog dial on the right side of the front panel, clockwise to increase, counterclockwise to decrease

The arrow keys on the front panel, up/down to increase/decrease, left/right to select place to modify

The number pad on the front panel, type the desired quantity and hit enter

Switch between setting max current and max voltage with the V-Set and I-Set buttons

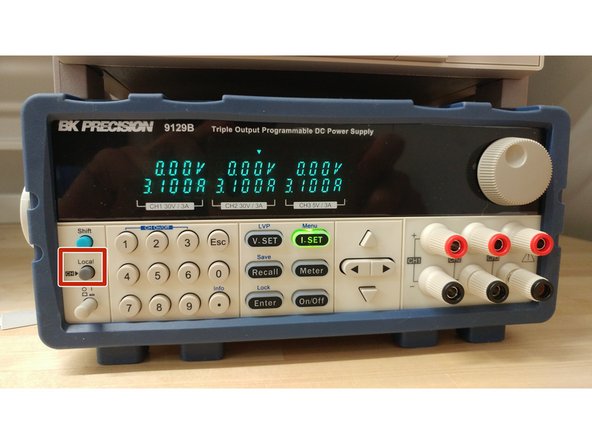

Cycle between channels using the grey Local button on the left side of the front panel

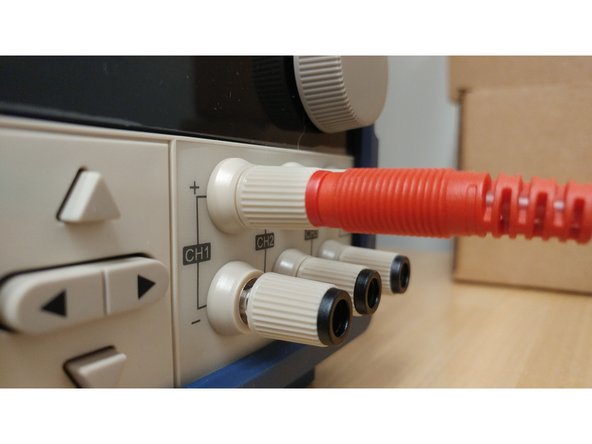

Wires can be connected to the channels either via the banana plug socket or by screw down wire clamps

All channels can be toggled on or off simultaneously with the on/off button

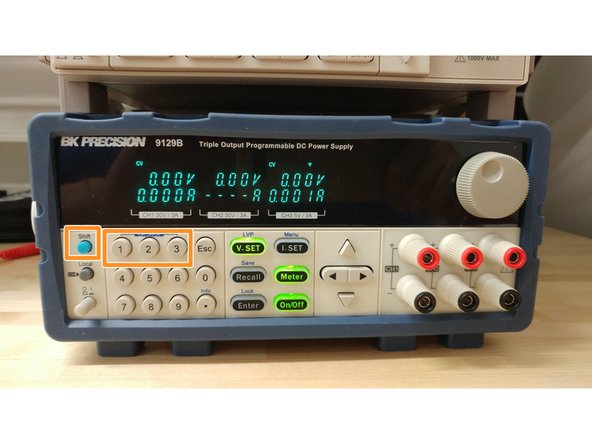

Individual channels can be toggled by pressing Shift and subsequently pressing the 1, 2, or 3 keys respectively

The power supply can be switched to display the actual current and voltage across each channel using the Meter button

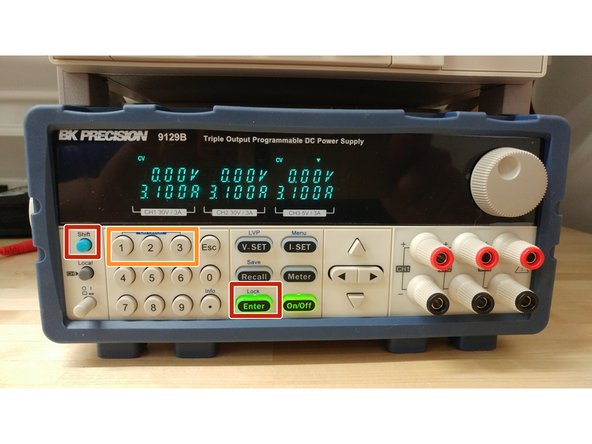

The power supply can be locked so that no input will alter the set quantities for each channel by pressing Shift and then pressing the Enter button

In this mode, most inputs have no effect, but the 1, 2, and 3 keys will toggle their respective channels on and off without the Shift key

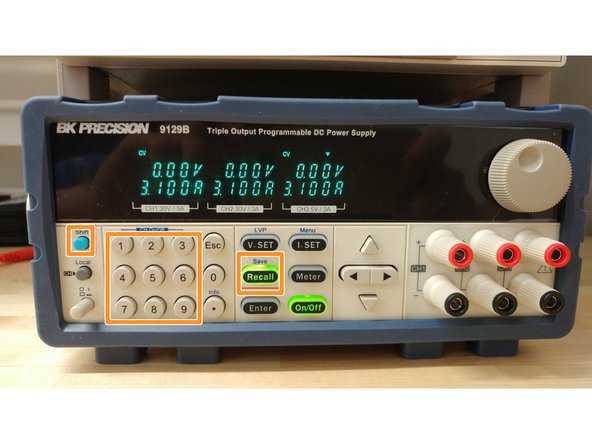

Voltage and current settings can be saved using the save/recall functionality

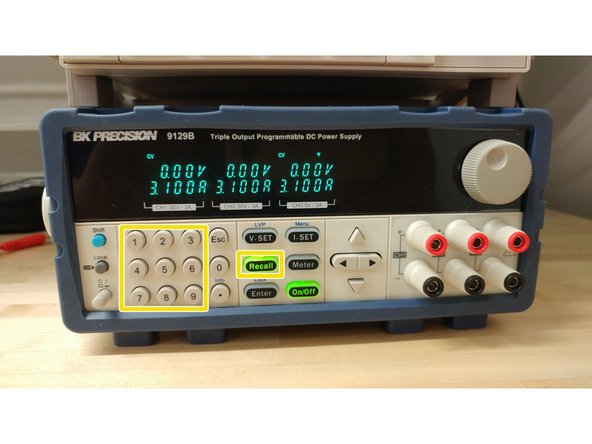

To save the current settings, press Shift and press Recall (Save) to enter Save mode, then press one of the numpad keys to save the setting to that location

To recall a setting, simply press the Recall button to enter Recall mode, then press one of the numpad keys to restore the settings saved to that location
