  1. Using wide scraper, remove the parts off the build plate onto a blue towel There will be a "raft" layer left over Using the sharper/smaller scraper, remove the "raft" layer and dispose of it

    • Using wide scraper, remove the parts off the build plate onto a blue towel

    • There will be a "raft" layer left over

    • Using the sharper/smaller scraper, remove the "raft" layer and dispose of it

    • Set parts aside

  2. Using deionized water, spray the build plate Using the woven fiber cloth, wipe away any residue on build plate and surrounding areas

    • Using deionized water, spray the build plate

    • Using the woven fiber cloth, wipe away any residue on build plate and surrounding areas

    • It is not necessary to completely dry off the build plate, but do not leave pools of water

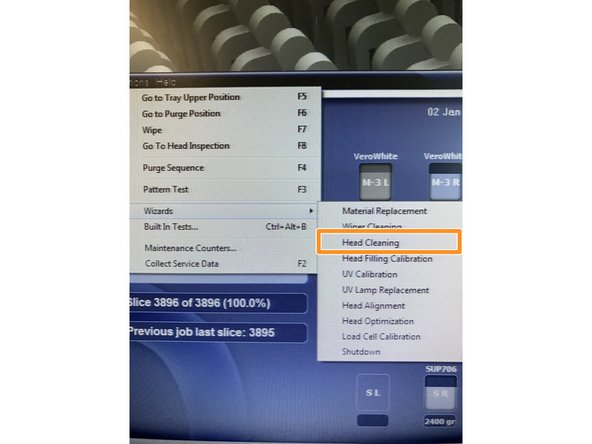

  3. Options -> Wizards -> Head Cleaning Follow steps, cleaning UV lamps, roller, and print heads Follow steps, cleaning UV lamps, roller, and print heads

    • Options -> Wizards -> Head Cleaning

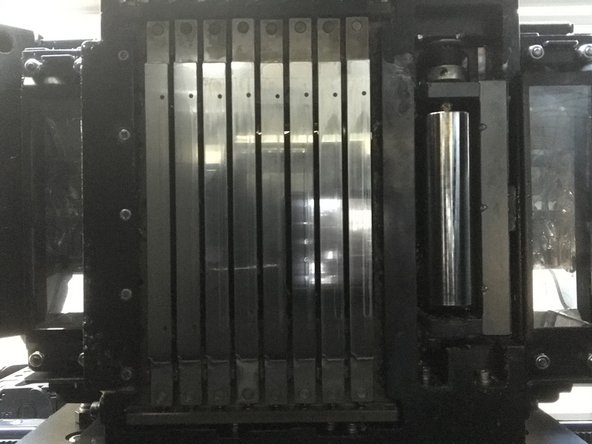

    • Follow steps, cleaning UV lamps, roller, and print heads
