Connex: UV Calibration

Written By: Erik Hung (and 2 other contributors)
  • Comments: 0
  • Favorites: 0

Difficulty

Very easy

Steps

4

Time Required

00:15:00

Sections

1

Flags

0

  1. Options -> Wizards -> UV Calibration UV Calibration UV Sensor Box

    • Options -> Wizards -> UV Calibration

    • UV Calibration

    • UV Sensor Box

  2. Get UV Calibration Kit from top shelf in Cabinet

    • Get UV Calibration Kit from top shelf in Cabinet

    • Use the Calibration Kit

  3. Following the Wizard, enter the C/F number (1.04) The Wizard remembers the previous value put in, you should not need to change the value Follow remaining steps of Wizard

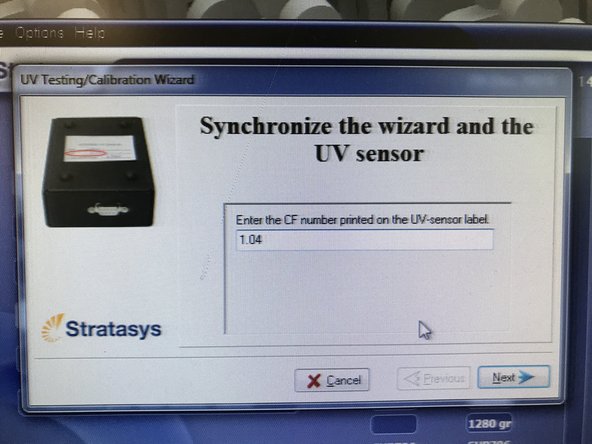

    • Following the Wizard, enter the C/F number (1.04)

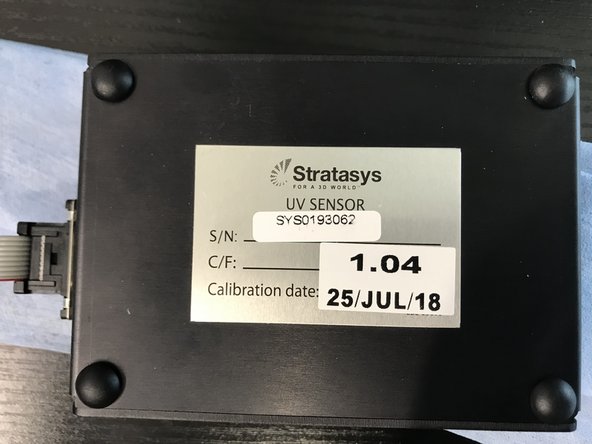

    • The Wizard remembers the previous value put in, you should not need to change the value

    • Follow remaining steps of Wizard

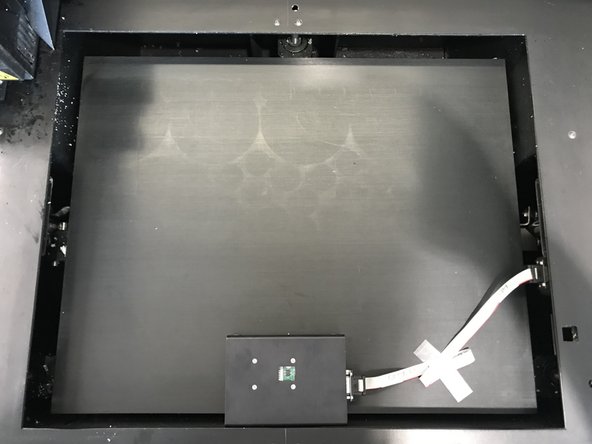

    • Place UV sensor at the center of the build plate along the wall closest to you and tape the cord down

  4. Check that there are 6 green checks at the end of the Wizard

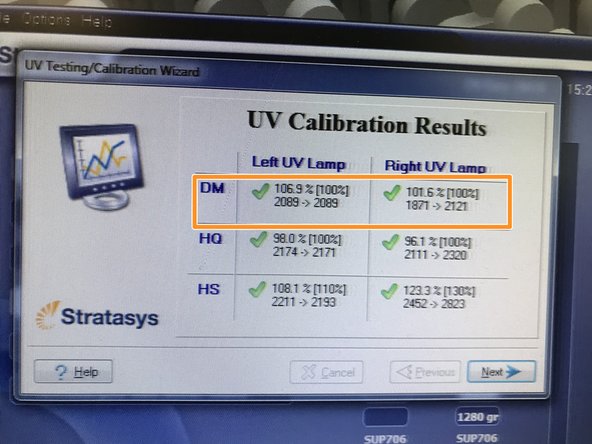

    • Check that there are 6 green checks at the end of the Wizard

    • The priority is to have "Digital Materials" have green checks on both left and right lamps

    • If there are not green checks, clean the lamps thoroughly with IPA

    • Run UV Calibration again, if still not all green checks, replace the lamp

    • If lamp needs to be replaced, refer to the manual page 6-58
