Cricut Keychain Guide

You can either use the Cricut Maker through the desktop next to it, or directly from your personal laptop by connecting it to the Cricut via the USB 2.0

If using the RPC desktop, use the USB port behind the monitor

If using your personal computer, you will need to download the Cricut Design Space app and set up an account

The download and setup process takes only about 5 minutes

You will also need an account to use the app on the desktop computer

First select a black silhouette image you want to cut

The simpler the silhouette, the better.

Open up the Cricut Design Space app and click the New Project button in the upper right hand corner

On the bottom of the left column, click Upload to insert the silhouette file you saved

You'll see options to upload an image or a pattern. Make sure that for whichever you use, you have the appropriate file type saved as listed

After selecting the type of image, you will need to remove any unnecessary background that you don't want included in your silhouette cut

For the type of cut, select Cut Image, instead of Print then Cut

Once selected, you'll be brought back to the canvas board

On the Operations Tab above, you'll see the Base Cut tab. Click on the drop down and select Base Cut.

The image will become gray. Select the colored box beside the tab and choose the color closest to the color of the material you're printing with (i.e. red material color for red paper)

Resize and modify the cut as you see fit

When done slicing, click the Make It button on the upper right hand corner

Remove the plastic cover from the cutting mat; save the cover for reapplication later

Blue Mat: for Paper, Vinyl, and Cardboard/Cardstock ONLY

Pink Mat: for Fabrics ONLY

Place the material you'll be cutting on the upper left-hand corner of the mat

Open up the Cricut Maker

Make sure that the blade is set in place in Clamp B

Clamp A is for a guiding pen

Clamp B is ONLY for the cutting blade to be used

Place mat under the guides near the roller

Press the flashing load/unload button on the machine

Select the print material that you'll be using

If confused, follow the instructions as given by the Design Space app. There will be detailed descriptions of each type of material option.

Press the flashing cricket button to start the cut

Once the cut is finished, remove the mat from the Cricut by pressing the load/unload button again.

Take off the material that was cut and reapply the plastic covering once the mat cover is cleared

If done using the Cricut Maker, place the mat back into the baby blue suppy bin

Cut off the section of material where the cutout was made

If large enough, the leftover material can be reused later

Clean up your cut as you see fit

For vinyl cutouts, see How to Harvest Vinyl Cricut Prints

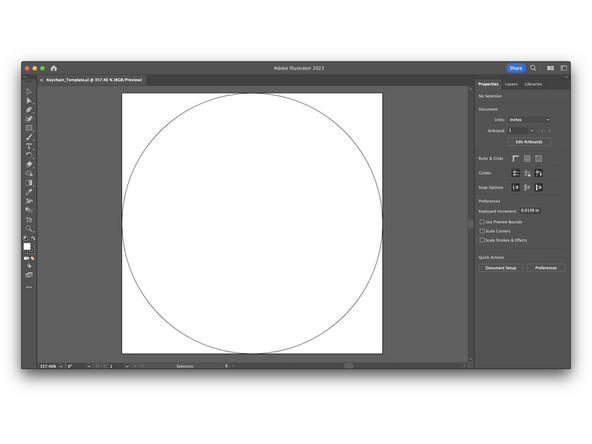

Open the Adobe Illustrator Template.

Place your design into the template circle and ensure that it is only black and white.

A useful tool for this is the Image Trace feature which allows you to change a colored image to black and white.

Place the patterns exactly as you would want them when transferred to the keychain.

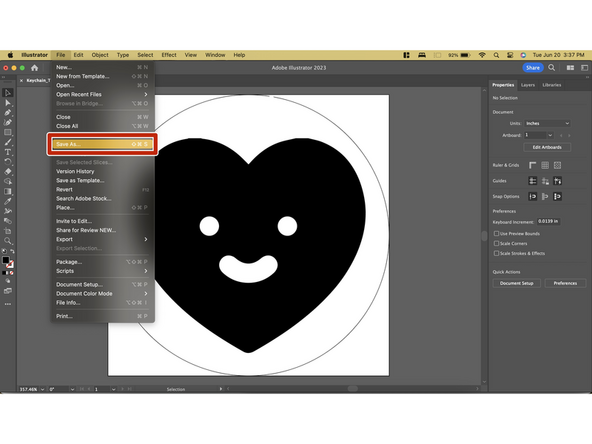

Once completed with the design, select File→Save As

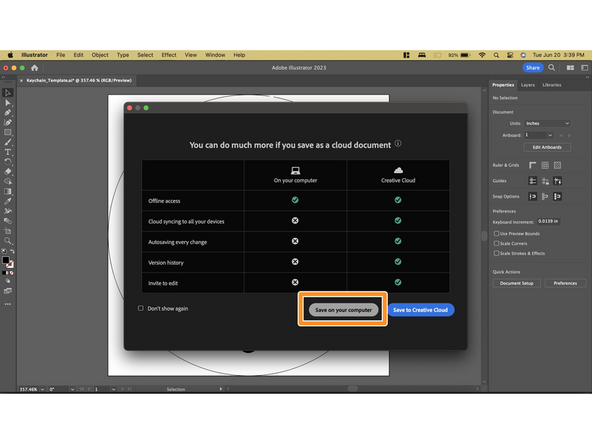

Select Save on your computer

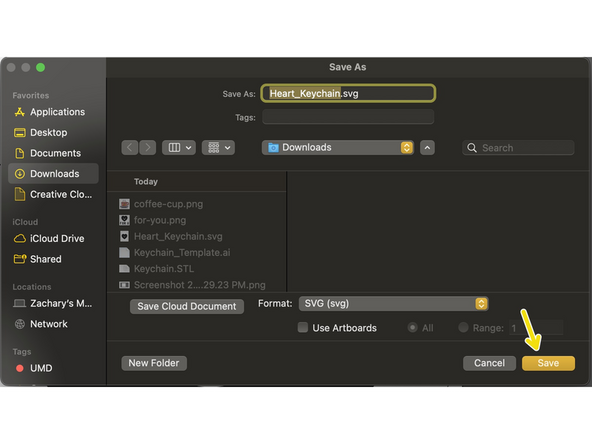

Give the file a descriptive name and then click Save and Ok.

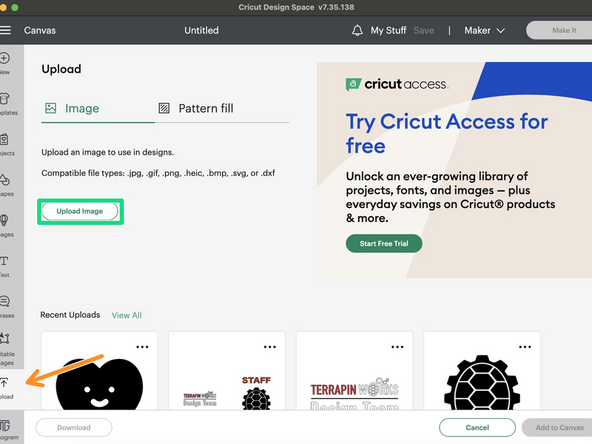

Select New Project on the home page

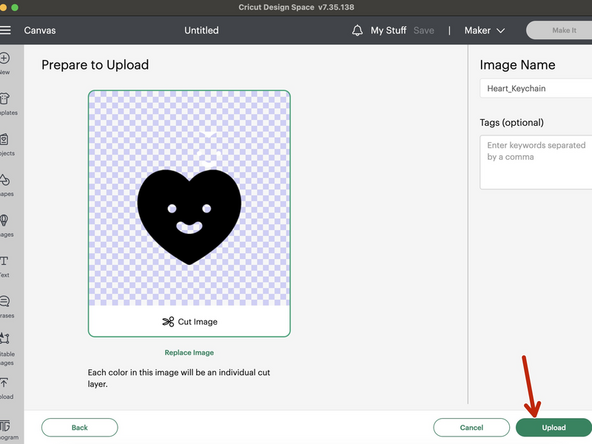

Select Upload to start adding our svg

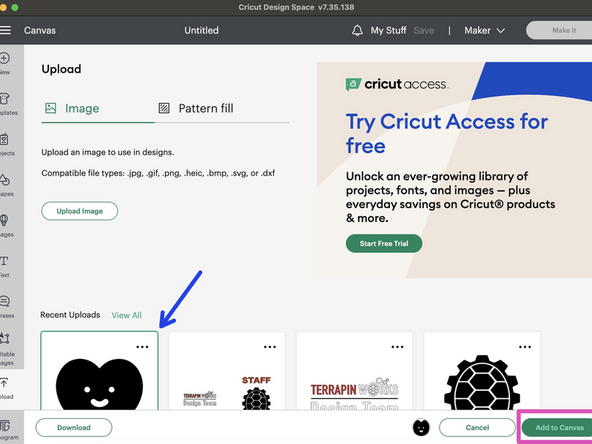

Select Upload Images

Select the image we just uploaded

Select Add to Canvas

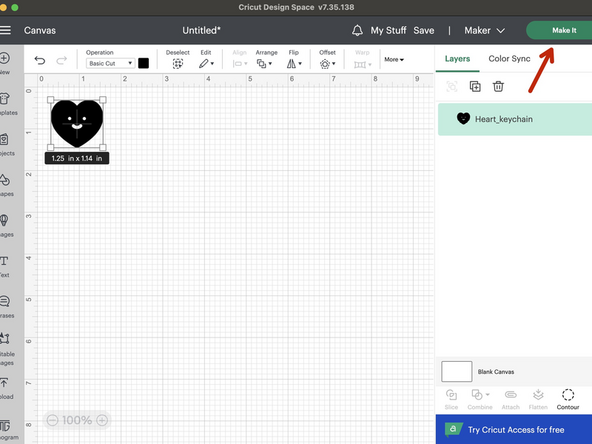

Move the sticker so that it will be in the corner of the vinyl sheet you cut.

Select Make It once ready.

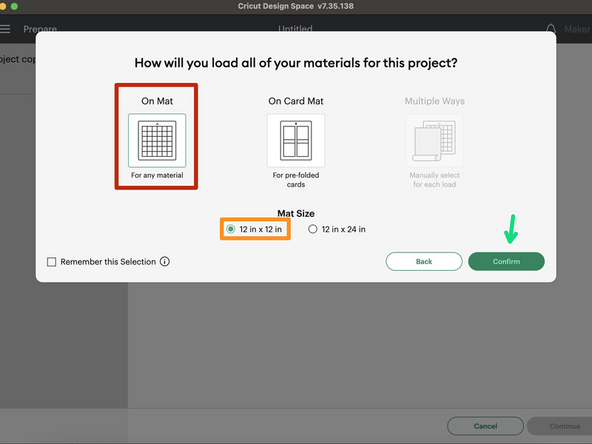

Select On Mat

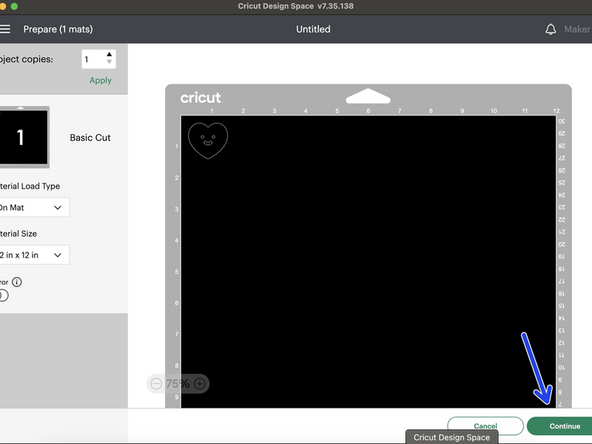

Select 12 in x 12 in

Select Confirm

Confirm that the cut looks correct and then select Continue

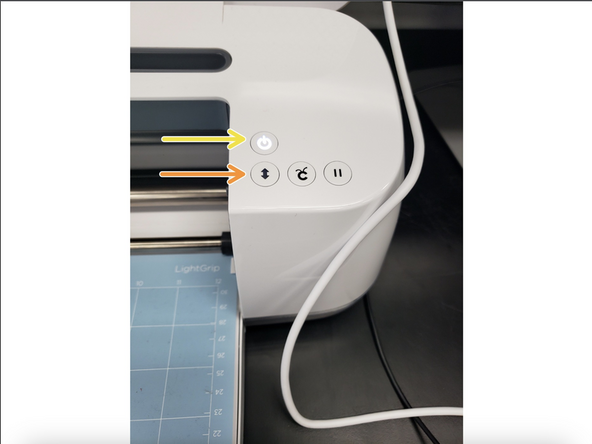

Press the flashing load/unload button on the machine

Select the print material that you'll be using

If confused, follow the instructions as given by the Design Space app. There will be detailed descriptions of each type of material option.

Press the flashing cricket button to start the cut

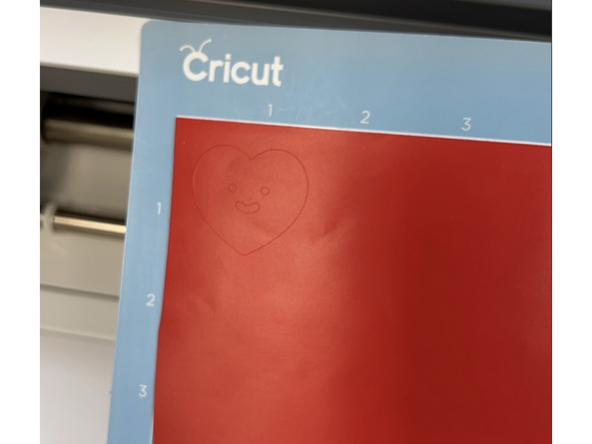

Peel off the material from the cutting mat and put the plastic cover back on it.

Harvest the sticker according to the steps in the pre-requisite guide.

If your design is multiple parts or more complex, refer to this guide for detailed instructions on harvesting.

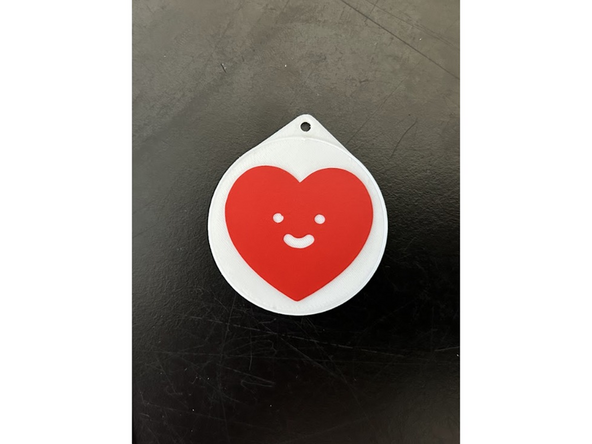

Apply the sticker to your keychain.
