Introduction

Sources: Dremel Manual

  1. Wait until the build plate has cooled With the object still attached, remove the build platform from the build area by pressing on the black clips
    • Wait until the build plate has cooled

    • With the object still attached, remove the build platform from the build area by pressing on the black clips

  2. Bring the build plate to a stable location so that it doesn't move when you're removing the part
    • Bring the build plate to a stable location so that it doesn't move when you're removing the part

    • Using a Spatula or scrapper work around the edges of the raft and move towards the center of the part until the model has released from the build plate

    • Avoid scratching the build plate as much as possible

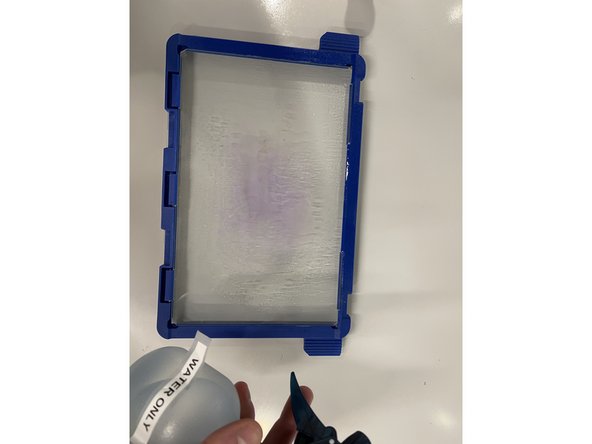

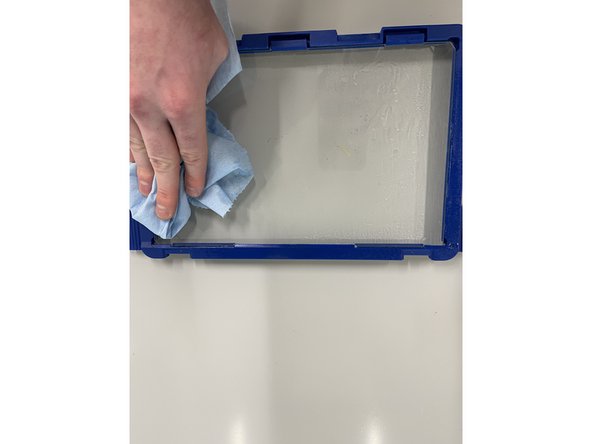

  3. To clean the build plate apply a large amount of water and wipe clean with a paper towel to remove excess glue To clean the build plate apply a large amount of water and wipe clean with a paper towel to remove excess glue
    • To clean the build plate apply a large amount of water and wipe clean with a paper towel to remove excess glue

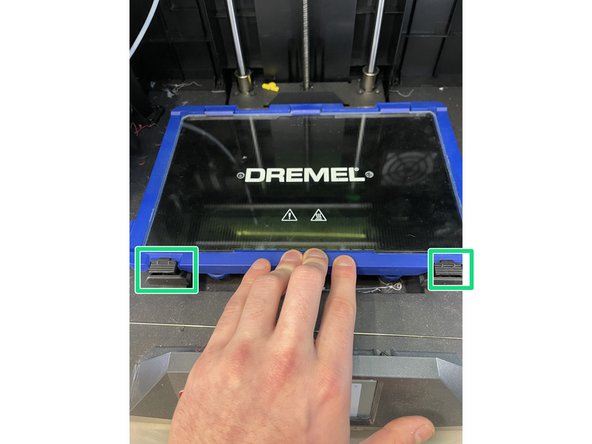

  4. Slide the plate back into the printer as shown Push down on the front side of the plate near the black clips to lock it back into place
    • Slide the plate back into the printer as shown

    • Push down on the front side of the plate near the black clips to lock it back into place
