How to grease the Ironworker. Grease once daily before use.
Tools
Parts
No parts specified.
-
-
Make sure E-Stop is engaged and power is off
-
This panel can be found on the bottom left of the machine on the front side
-
Put on safety glasses
-
-
-
The gun can be found in the yellow metal cabinet at the front entrance
-
Remove ring lock on handle
-
-
-

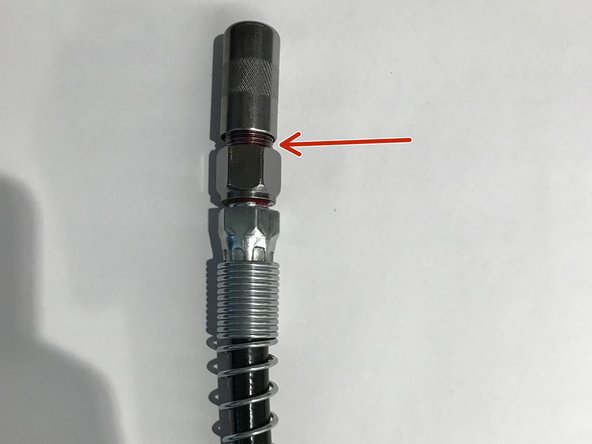

Make sure everything on the nozzle is tightened as shown. No threads are visible.
-

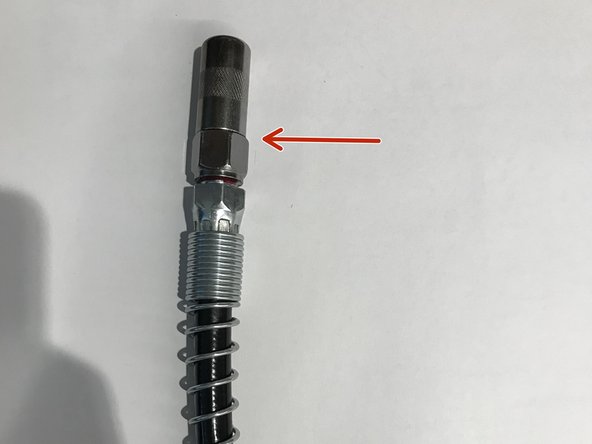

Second image shows correct setup
-
-
-
Insert nozzle into place as shown. Make sure the nozzle is centered with the ball and is in completely.
-

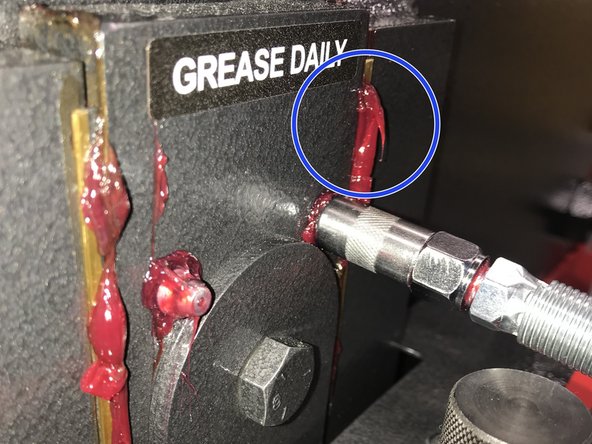

Pump the grease by gripping the handle together.
-
Grease should flow out on the side with the blue circle.
-
The amount shown is adequate, stop pumping when you reach this point
-
-
-

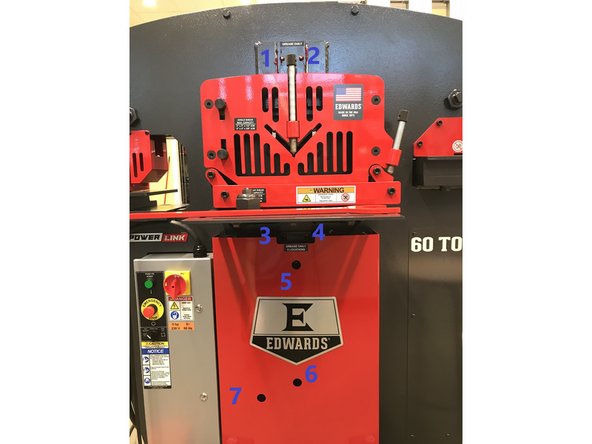

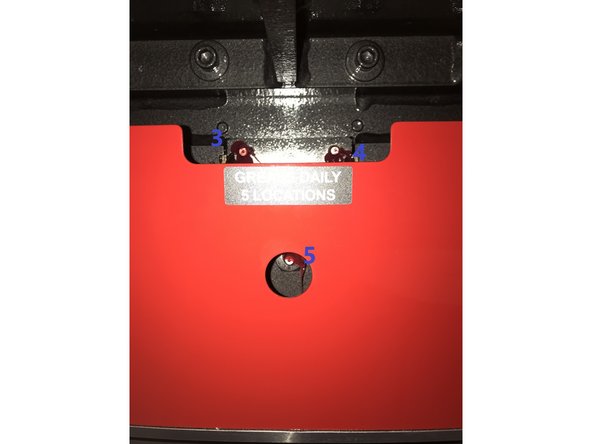

7 total places to grease in the front, numbered in blue
-
-
-

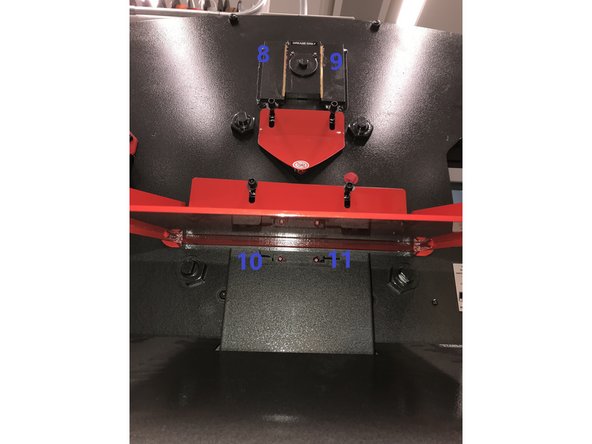

4 grease locations in the back, making 11 total for the entire machine
-
Locations 10 and 11 are under the scrap tray.
-
