Markforged Mark Two: Bed Leveling

Before performing any bed leveling procedure, thoroughly clean the print bed with water to remove any glue residue

Dry the print bed with a paper towel before proceeding

Select the menu icon from the dashboard

Select the bed level tile from the available options

Select the shim bed level tile from the available options

Read the warning about putting pressure on the print bed during leveling and press Next

Ensure that you have both the two brass leveling shims from your accessory kit, then press Next

Loosen each of the three thumbscrews below the print stage to its lowest point and press Next. Take care not to over-loosen the thumbscrews, as they may fall out of the print stage

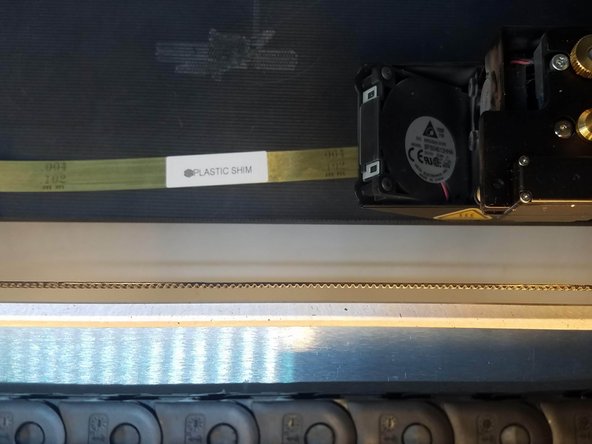

Slide the plastic shim between the print bed and the nozzle and press Next

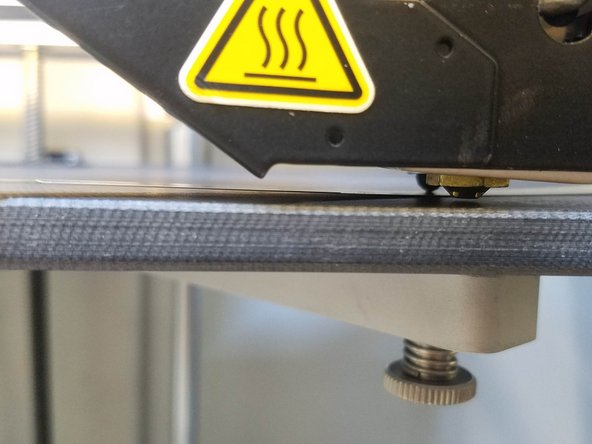

Adjust the thumbscrew until you feel slight resistance on the shim and press Next

Repeat these steps for each thumbscrew, as prompted by the utility.

When prompted by the utility, slide the plastic shim between the plastic nozzle and the print bed to verify the tension over the rightmost thumbscrew.

If you no longer feel slight resistance on the shim, the print bed is not level. In that case, adjust the thumbscrew until you feel slight resistance on the shim, then press Retry to follow suit with the other two thumbscrews. Otherwise, press Next

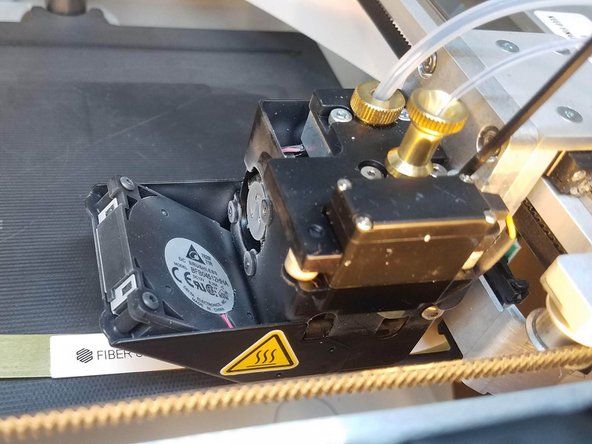

Slide the fiber shim between the nozzle and the print bed and press Next

Use a 2.5mm hex key to adjust the fiber nozzle height until you feed slight resistance on the fiber shim

Double-check the resistance on both shims and press Run Utility to calibrate the fiber nozzle (if applicable), Retry to re-level the print bed, or Skip to exit the utility.
