Prusa i3 MK3S: Belt Tensioning

Written By: Brandon Bennett Young (and one other contributor)
  • Comments: 0
  • Favorites: 0
  • Completions: 2

Difficulty

Moderate

Steps

3

Time Required

00:06:00

Sections

1

Flags

0

  1. Adjust screw to tension the stepper

    • Adjust screw to tension the stepper

  2. Remove 4 screws on the back of the extruder assembly In the assembly there are two slots where the edge of the belts tie into

    • Remove 4 screws on the back of the extruder assembly

    • In the assembly there are two slots where the edge of the belts tie into

    • If the belt is loose,

    • Remove one side of it from the case

    • Pull the belt tight

    • Snip off any excess material

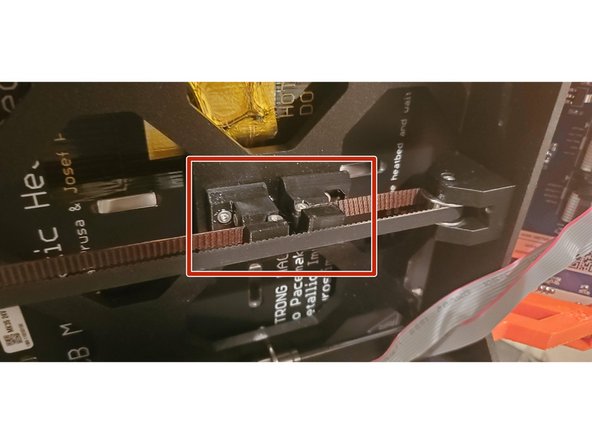

  3. Adjust the tension on the bottom of the carriage

    • Adjust the tension on the bottom of the carriage

Finish Line

2 other people completed this guide.
