Introduction

The Form 3+ is an affordable desktop stereolithography printer, delivering high-resolution parts in a variety of high end materials at a fraction of the cost/footprint of industrial 3D printers in .

Images By: Formlabs, Terrapin Works

  1. We ONLY use material sold by Formlabs Resin tanks and empty resin tank containers are stored on the bottom shelf

    • We ONLY use material sold by Formlabs

    • Resin tanks and empty resin tank containers are stored on the bottom shelf

    • Opened resin cartridges are stored in the grey bins on the shelf above the tanks

    • New cartridges are located behind the black PVC sheet on the left side of the top left shelf

    • Replacement parts and spare build plates are located on the right side of the top left shelf as well as in the top right shelf

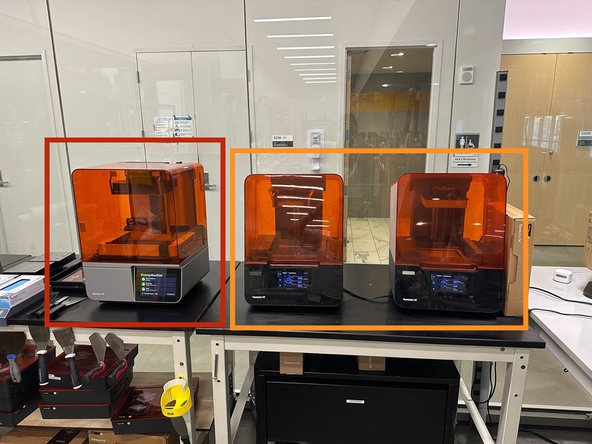

  2. Formlabs machines in the front room of the AFL next to the scanner. Form 4 SLA Printer

    • Formlabs machines in the front room of the AFL next to the scanner.

    • Form 4 SLA Printer

    • Form 3 SLA Printer

    • Keep the area near and around the printers clean and clear as the area is very visible to passers-by

    • Sweep dust off the shelf and wipe clean with IPA once a week

    • The orange shields of the Formlabs are very sensitive to IPA and will crack if any IPA gets on them so be cautious when cleaning

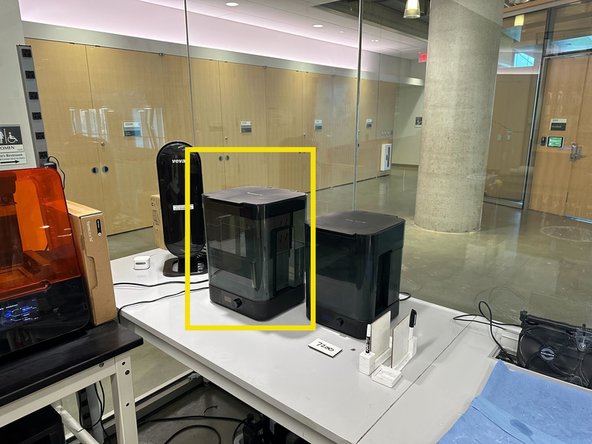

    • There are separate Wash Stations for the Form 3 and 4. The larger one is for the Form 4.

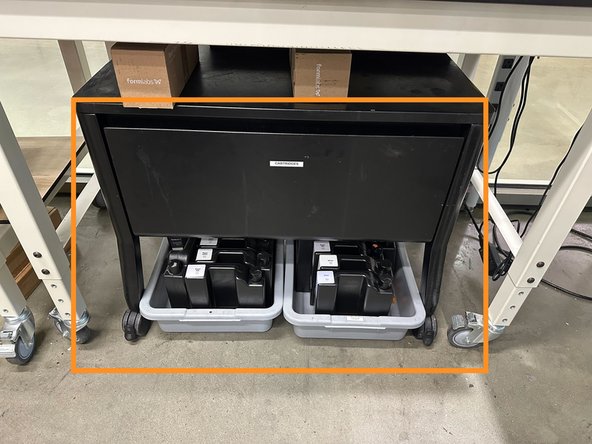

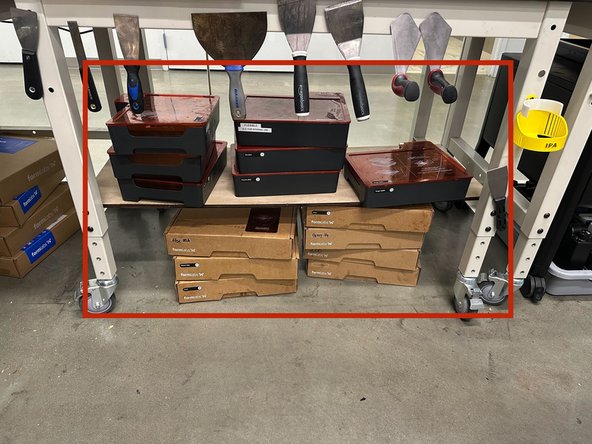

  3. The Formlabs print out of a variety of different materials and colors, you can read about all of them on the Machine Wiki All Formlabs materials are toxic and you should wear nitrile gloves at all times when handling any Formlabs related parts

    • The Formlabs print out of a variety of different materials and colors, you can read about all of them on the Machine Wiki

    • All Formlabs materials are toxic and you should wear nitrile gloves at all times when handling any Formlabs related parts

    • Due to their toxicity we are NOT allowed to dispose of uncured resin in the garbage or down any drain, therefore we must cure all resin before disposal using UV light

    • The Resin Tanks are located below the Formlabs Printers.

    • The Resin Cartidges are located in the draw below the printers as well as In-Use cartidges underneath in grey bins.

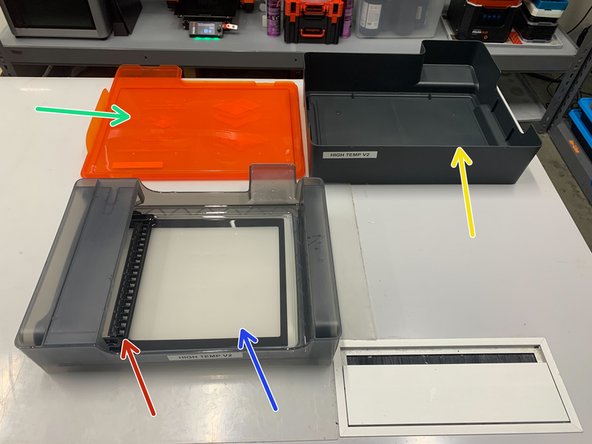

  4. The Resin Tank is the flat container where the resin is fused to the build plate NEVER touch the bottom of the Resin Tank as imperfections will impede the laser's ability to solidify the resin

    • The Resin Tank is the flat container where the resin is fused to the build plate

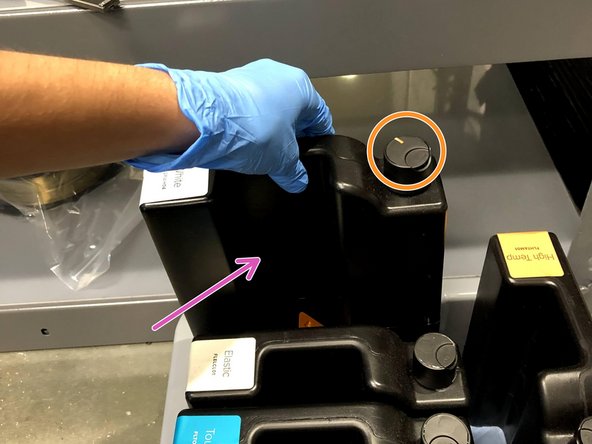

    • NEVER touch the bottom of the Resin Tank as imperfections will impede the laser's ability to solidify the resin

    • The Wiper stays with its own Resin Tank

    • The black Tank Container stores the tank when not in use

    • The orange Tank Cover gets placed on the resin tank and container to prevent additional curing from stray UV light

    • The Resin Cartridge is the black container that equivocates to a filament spool

    • The Vent is located at the top cap of the Cartridge

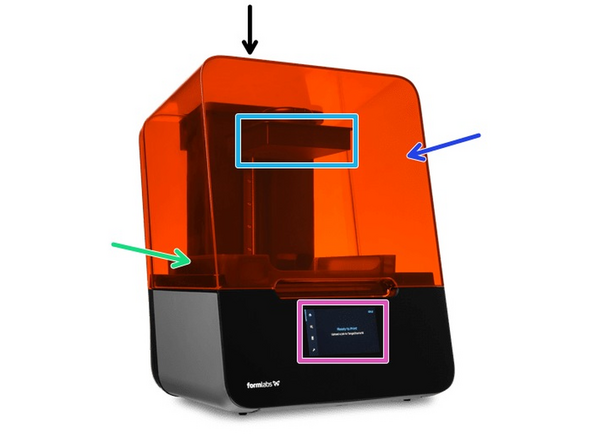

  5. The Resin Tank sits in the base of the print chamber

    • The Resin Tank sits in the base of the print chamber

    • The Resin Cartridge is lowered into the back of machine from the top

    • The Build Plate sits upside down on the z-axis arm

    • The orange shield or hood protects the resin from UV light which will solidify it if exposed for too long

    • Do NOT leave the shield up for extended periods of time - UV light cures the resin

    • The touch screen interface is located on the front of the machine

    • The Formlabs Form 3+ are high quality SLA machines which print their own proprietary resins

    • The Formlabs are able to achieve significantly smaller layer heights (down to 25 microns) and higher fidelity in the x and y directions (~ .01 mm)

    • The main interface of these machines is a touchscreen on the front accompanied by a power switch at the back

    • The Formlabs printers are connected to the AFL network and can be sent jobs when you are on the AFL network
