Introduction

This guide will cover all the necessary steps including safety check to begin a print on the Nexa3D XiP.

  1. Insert a USB drive into the PC you are using. Once you have completed slicing, find the .NXA file. Copy/paste the .NXA file onto a USB drive
    • Insert a USB drive into the PC you are using.

    • Once you have completed slicing, find the .NXA file.

    • Copy/paste the .NXA file onto a USB drive

    • Eject the USB drive and insert it into the XiP you are printing on.

  2. Tap the "Print" button on the touch screen. Tap "USB" for the file location. Find the model you want to print and tap on it.
    • Tap the "Print" button on the touch screen.

    • Tap "USB" for the file location.

    • Find the model you want to print and tap on it.

  3. A Pre-Print Checklist must be completed before confirming the print. Take a rubber spatula and gently glide along the bottom of the tank. There should be no debris or rough patches. Make sure the build platform is cleaned and seated in the machine.

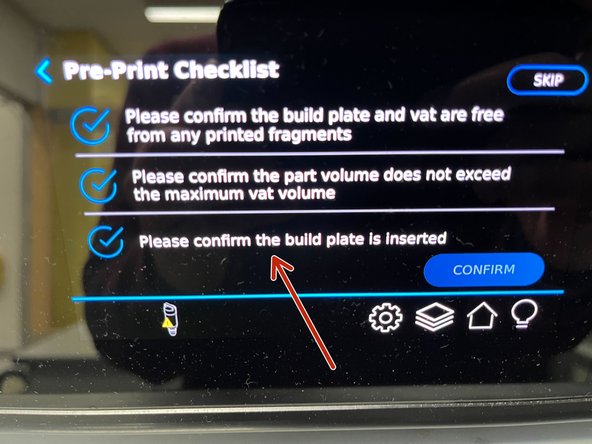

    • A Pre-Print Checklist must be completed before confirming the print.

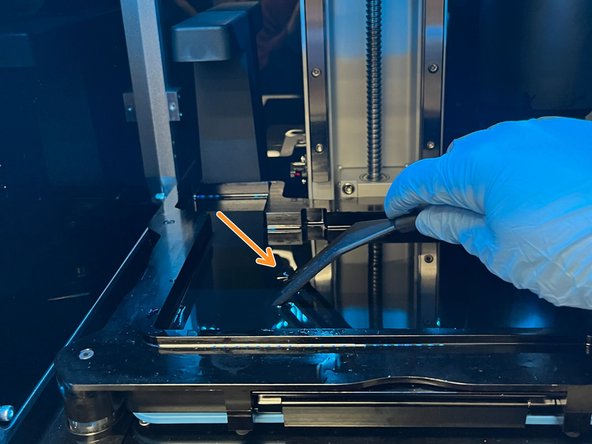

    • Take a rubber spatula and gently glide along the bottom of the tank. There should be no debris or rough patches.

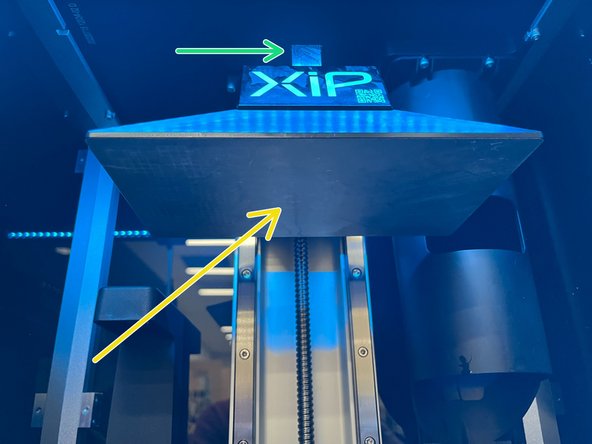

    • Make sure the build platform is cleaned and seated in the machine.

    • The latch at the top should be in the upright position.

  4. Navigate to the Printer Status menu to check if a cartridge is inserted. If there is no cartridge inserted, take one from the cartridge honeycomb. Ensure the cartridge matches the resin in the tank! Insert the cartridge at the top of the machine.
    • Navigate to the Printer Status menu to check if a cartridge is inserted.

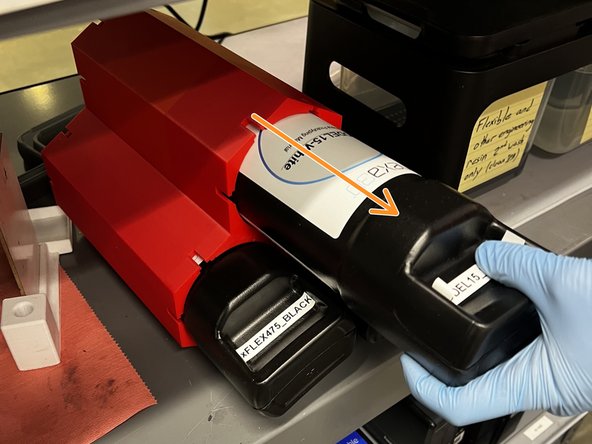

    • If there is no cartridge inserted, take one from the cartridge honeycomb. Ensure the cartridge matches the resin in the tank!

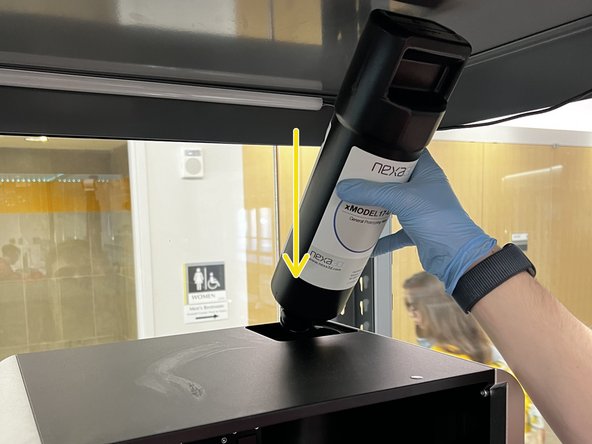

    • Insert the cartridge at the top of the machine.

  5. Tap "CONFIRM" once the previous steps are completed. A progress screen will appear for the duration of the print.

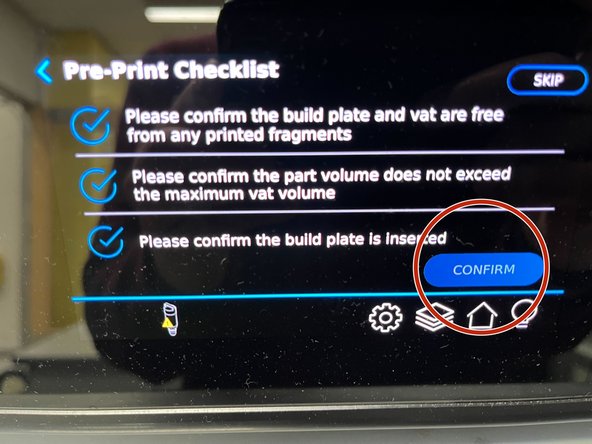

    • Tap "CONFIRM" once the previous steps are completed.

    • A progress screen will appear for the duration of the print.

    • The print has now been started.
