Introduction

Images by: Chinmay Sevak.

  1. Open Chrome Go to the desired webpage Click F12 to open the developer tools menu
    • Open Chrome

    • Go to the desired webpage

    • Click F12 to open the developer tools menu

    • Click on the Devices icon to open the devices toolbar

  2. Click on the dropdown menu to the center left of the Devices toolbar Click Edit... at the bottom of the menu Click Add custom device... on the overlay to the right
    • Click on the dropdown menu to the center left of the Devices toolbar

    • Click Edit... at the bottom of the menu

    • Click Add custom device... on the overlay to the right

    • Fill out the desired specifications in the prompt

    • Be sure to select Desktop if you would like to zoom on the webpage contents

    • Click Add when done

  3. Close the Emulated Devices menu Select the new Custom Resolution by name This applies the new emulated device, and you can see what the page would look like at that resolution

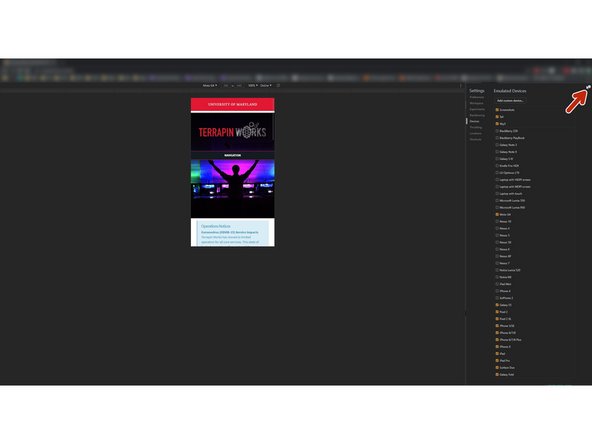

    • Close the Emulated Devices menu

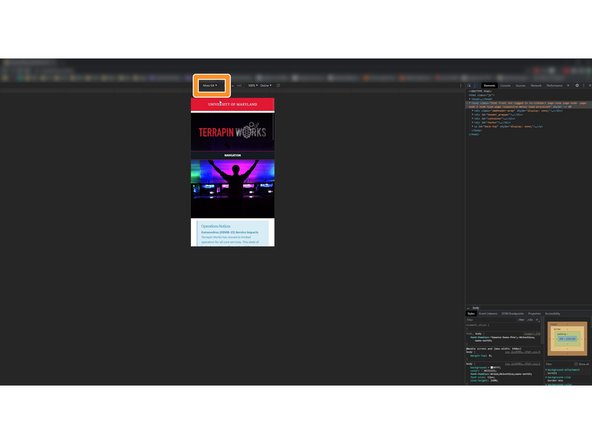

    • Select the new Custom Resolution by name

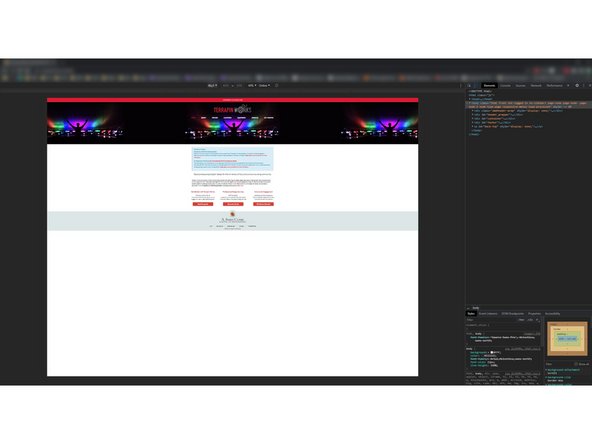

    • This applies the new emulated device, and you can see what the page would look like at that resolution

  4. Click anywhere on the webpage to interact with it normally Use Ctrl+Plus and Ctrl+Minus to zoom into the page and frame page elements properly Click the three dots in the top left corner
    • Click anywhere on the webpage to interact with it normally

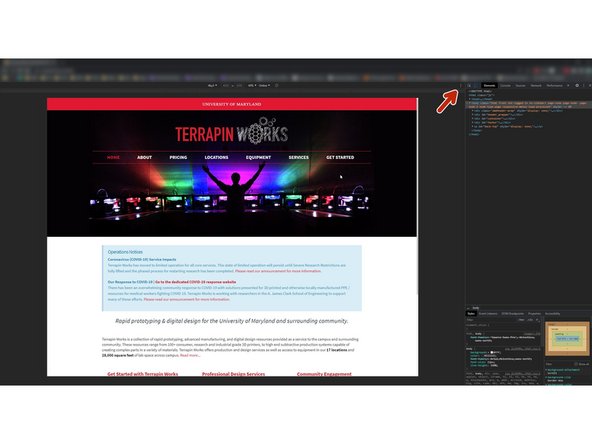

    • Use Ctrl+Plus and Ctrl+Minus to zoom into the page and frame page elements properly

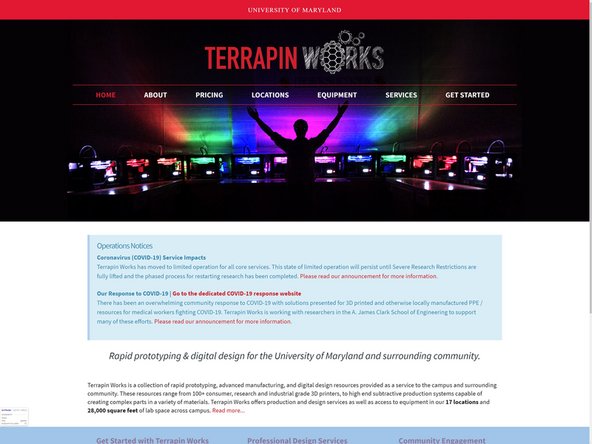

    • Click the three dots in the top left corner

    • Select Capture Screenshot to get a screenshot of the current view, select Capture Full-Size Screenshot to take a screenshot of all the rendered elements

    • The option to Capture Full-Size Screenshot may be useful in cases where there is a scrollbar

    • The screenshot will appear in your Downloads folder
