Domino Joiner

Safety goggles are required to work in the woodshop.

Ear protection is encouraged, but not required.

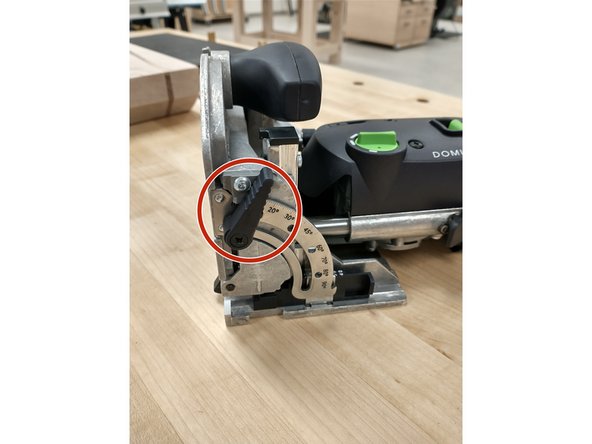

Turn the lever shown

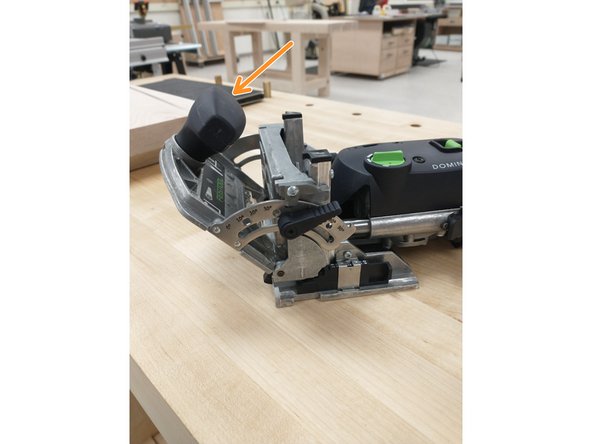

Push the large knob until the head reaches the desired angle.

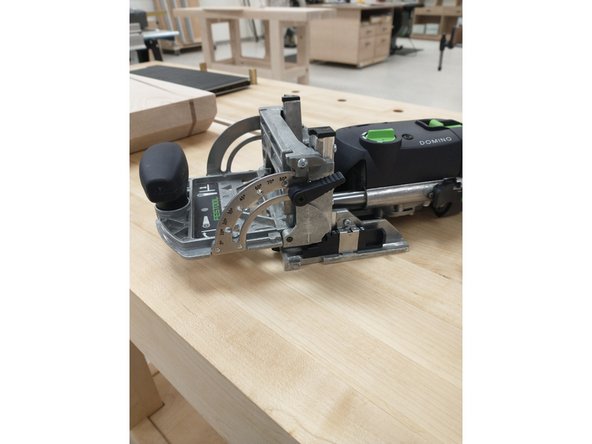

Most cuts will be made at 90 degrees, as this allows you to reference the top of your workpiece.

Rotate the lever shown, then push up the head.

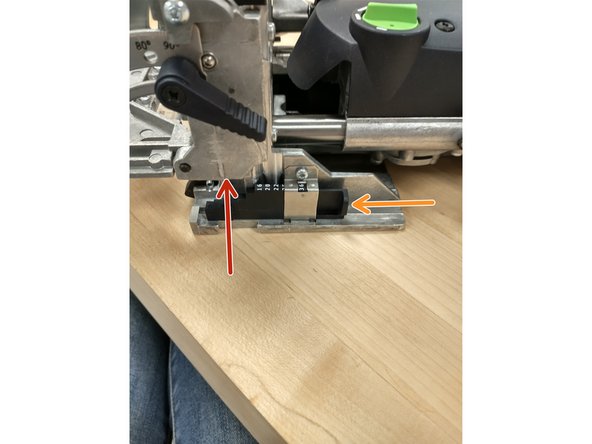

Push in the stepped bar until the desired height in millimeters is highlighted.

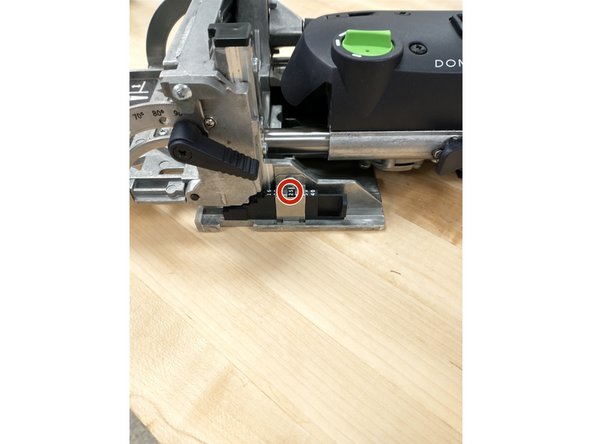

A good rule of thumb is to set the height to half of the thickness of the peice.

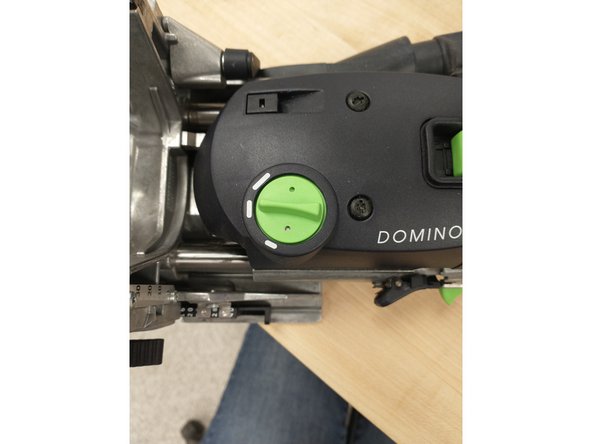

WITH THE MACHINE ON, turn the knob to the desired domino width.

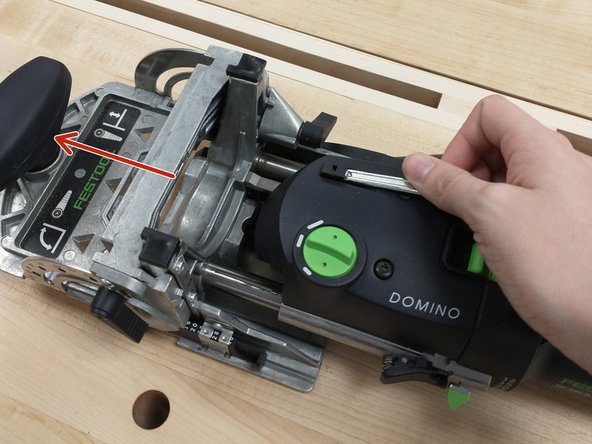

Use one of the provided wrenches to pop the button out, then pull the head off of the machine.

Press the lock button and use the wrench to unscrew the bit.

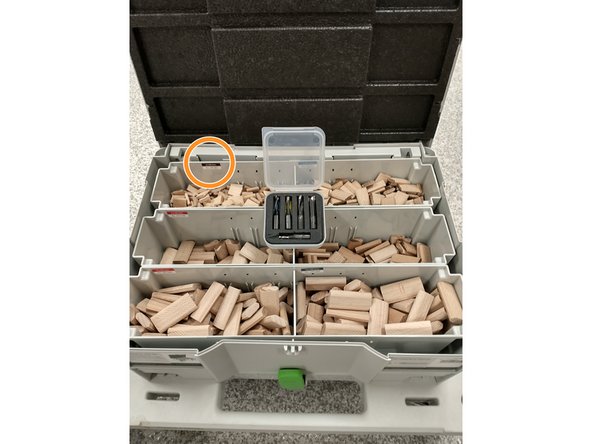

Choose a new bit that corresponds to your chosen domino size, labeled on the box.

Make sure to double check the size engraved on the bit to avoid any hole size mistakes.

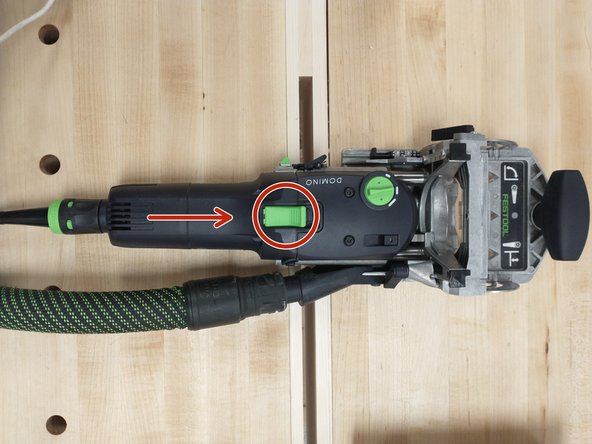

Hold the front knob and align the machine where you want a hole.

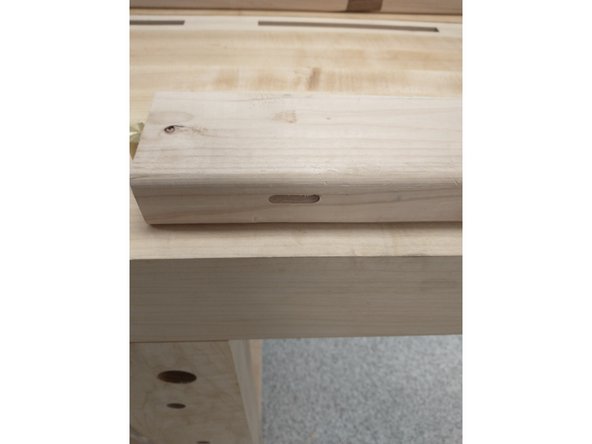

Depress the lever shown and push the handle of the machine into the head.

Make sure to keep a steady stance to avoid a messy hole.

Keep steady pressure on the front knob as the joiner is cutting to keep it from moving.
