Reciprocating Saw

1. Blade

2. Trigger

3. Battery Pack

4. Blade Lock

5. Forward Grip

6. Handle

7. Battery Release

8. Rocker Shoe

Wear eye protection at all times when using the reciprocating saw

Ear protection is also recommended as the saw is very loud

Hold the saw firmly with both hands when making cuts. This saw will vibrate a lot during operation and must be held tightly to avoid being dropped during operation

Keep long hair tied back, remove jewelry such as necklaces or bracelets, and roll up long sleeves when using the saw

Do not operate close to other workers since the saw vibrates a lot and because the blade on this saw is unguarded

Secure the material being cut with the reciprocating saw

Do not bind, twist or pinch the blade when making cuts with the reciprocating saw. Binding the blade may cause the blade to break or possibly jerk the saw from the user's hands

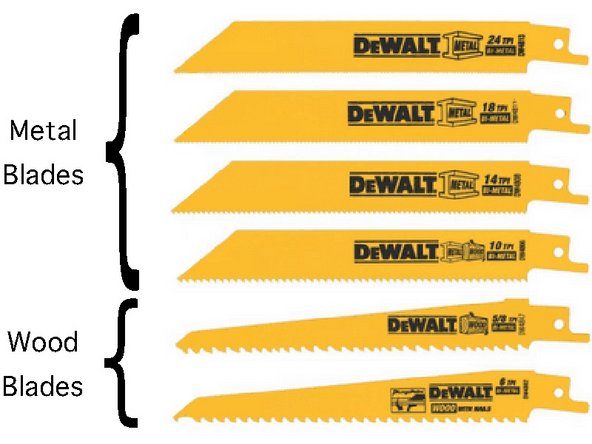

Select the correct blade for the type of material being cut with the reciprocating saw ask lab staff for appropriate blade

Metal cutting blades have finer teeth, and wood cutting blades have longer teeth

Use a shorter blade when possible, as longer blades are more flexible which is undesirable when using a reciprocating saw

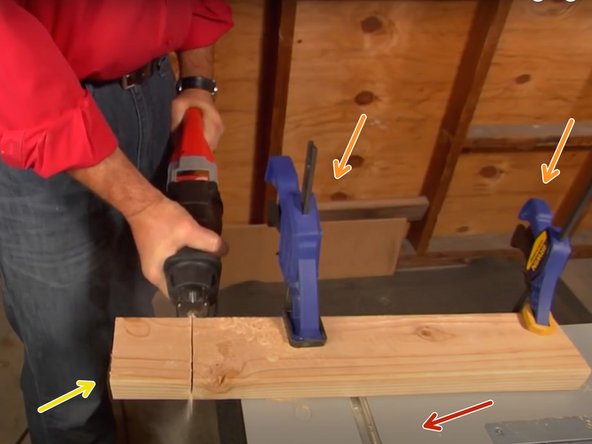

Secure the workpiece to a flat surface

Use at least two clamps if possible

Make sure the shorter edge of the workpiece is overhanging so as not to bind the blade

Watch where your feet are placed so they will not be hit by falling scrap material

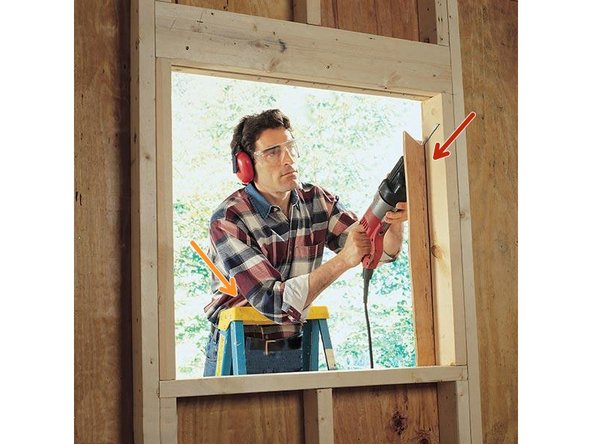

Mark lines to be cut, have cuts checked prior by lab staff

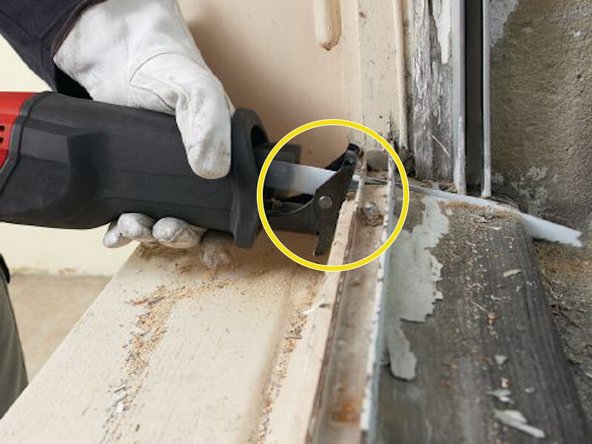

Position yourself in a steady position prior to making cuts with the reciprocating saw

If the reciprocating saw has a variable speed control, set on fast speed for cutting wood and on slow speed for cutting metals

Place the rocker shoe against the work when cutting with the reciprocating saw

Do not place excessive pressure on the saw while cutting

If the saw requires excessive pressure to cut, it is in need of a new blade. Change the blade before continuing the use the saw
