Safety goggles are required to work in the woodshop.
-
Ear protection is recommended, but not required.
-
Long pants, short/rolled up sleeves, and closed toed shoes are required.
-
Long hair must be tied back.
-
NO GLOVES - they can get caught in the machinery.
-
-
-
Lay the track onto the wood you want to cut. The saw will cut exactly where the edge of the track is.
-
Insert the clamps into the grooves on both sides of the track, and slide them until they are under the piece and the clamping material.
-
Push the clamp up against the surface and pull it back until it is tight.
-
Grip the green buttons to release the clamps.
-
-
-

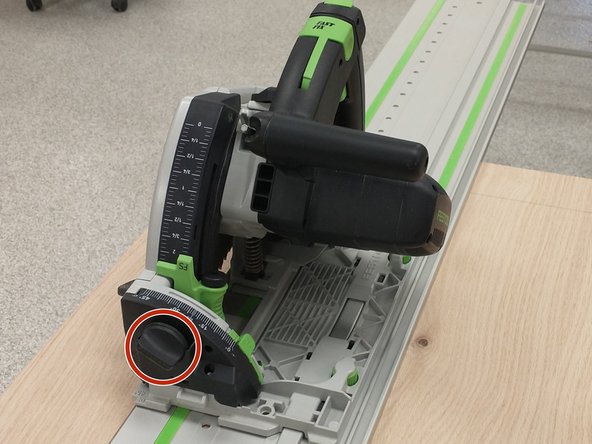

The track saw can make tapered cuts. To angle the blade first loosen the lock knob on the front of the machine.
-

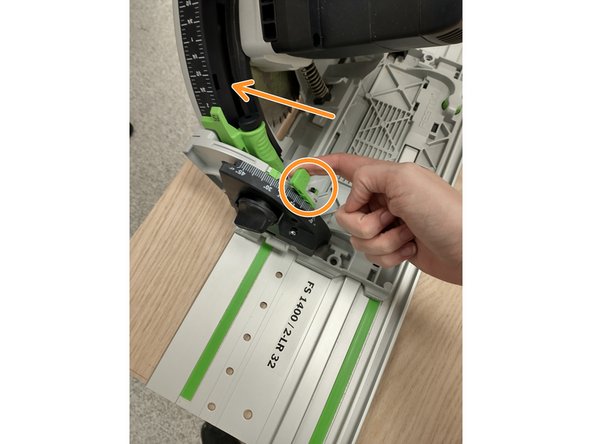

Pull the indicated lever and push the blade to the side.
-

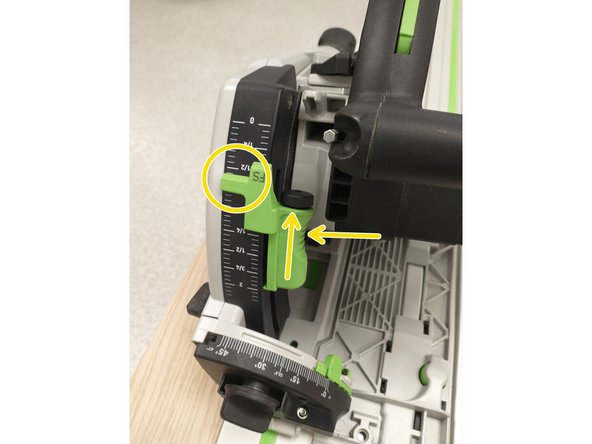

To raise and lower the depth of cut, push the apparatus towards the measurements and pull it up until the desired depth is indicated.
-
It is generally best to overhang your piece or put a sacrificial plank underneath it so that you do not cut the table. Make sure to check the depth before you cut.
-
-
-
To make cut, press the safety with your thumb and pull the trigger below.
-
Move the blade down, then across. When finished with the cut, move the blade back up before turning off the machine.
-
When cutting, keep pressure on the blade to maintain an even depth of cut.
-
